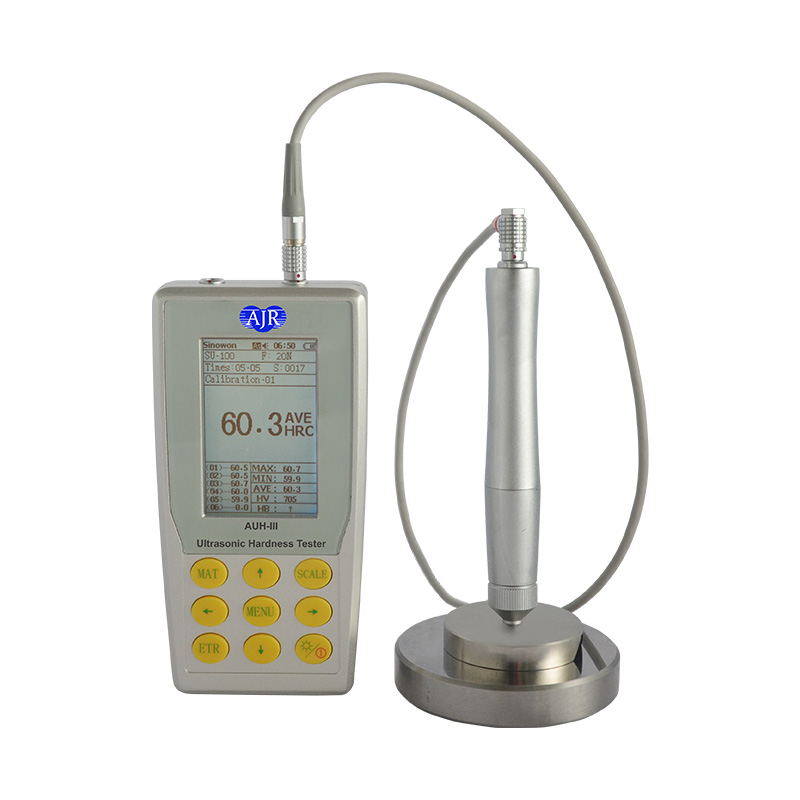

AJR-AUH-3
AUH-III UCI Hardness Tester
IN STOCK
ISO 9001
CE
ASTM
EN
The AUH-III employs Ultrasonic Contact Impedance (UCI) methodology with a Vickers diamond indenter, enabling accurate non-destructive hardness testing on thin sheets, case-hardened teeth, chrome plating, and heat-affected zones where rebound testing is unsuitable.
- Material
- Precision machined probe with polymer console
- Dimensions
- N/A
- Weight
- 450 g
Full specifications
| Method | Ultrasonic Contact Impedance (UCI) per ASTM A1038 |
| Test Load | 10N (1 kgf), 50N (5 kgf), or 98N (10 kgf) probe |
| Indenter | Vickers diamond 136 degree |
| Measuring Scales | HV, HRC, HB, HRB, MPa |
