AJR-XR-300KV

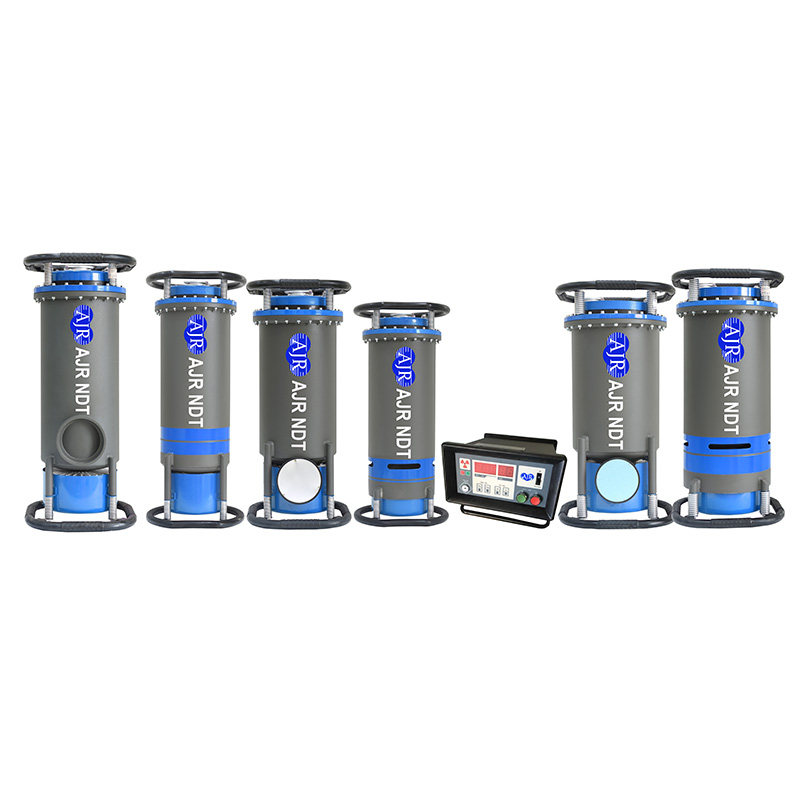

AJR NDT 120-300KV X Ray Flaw Detector
IN STOCK
ISO 9001
CE
ASTM
EN
The AJR 120-300KV industrial X-ray generator features SF6 gas insulation, ceramic tube construction, micro-computer controller, and superior penetration capacity up to 50 mm in steel.
- Material
- SF6 gas insulated metal tube head with digital controller
- Dimensions
- N/A
- Weight
- 32 kg
Full specifications
| Output Voltage | 120 - 300 kV continuously adjustable |
| Tube Current | 5 mA |
| Penetration (Steel) | Up to 50 mm (A3 steel, density >= 1.5) |
| Focal Spot | 2.0 x 2.0 mm |
| Beam Angle | 40 + 5 degrees directional |
